Minimalistic Serverless Shortlink Service in ~70 LoC

A few years back, while working on some DevOps-related tasks for Xamarin, I needed to create permalinks to CI/build artifacts so that other build pipelines (as well as local builds) could consume those regardless of the CI system that produced them (we had a mixture, so this complicated things).

Every CI system typically already provides a way to access build artifacts, but it’s frequently not very automation-friendly: it may be behind authentication, may not have easily constructable URLs, or may not correlate at all with the commit/sha being built. Another CI that needs to pick up those artifacts will have a hard time figuring out what “build ID” (say) to use to construct the URL to download stuff.

So I had the idea of using the https://aka.ms service that’s already in use across Microsoft for various redirection needs. There was a lenghty and complicated registration, approval, periodic renewal and what-not involved, so while all that got sorted out, I took a shot at having something working quickly that I could later replace with the official service.

It turned out to be so incredibly easy that I think it should just be a (rather cool) sample on how to use Azure functions + (table) storage in a real-world yet easily comprehensible (and useful!) scenario.

How It Works

Basically, the service consists of:

  1. Azure (Table) Storage: a table holds the shortlink > target URL mapping
  2. Azure Function: binds to that table, and redirects. In addition, provides POST/PUT support for creating the links (with shared secret auth).

In addition, to make the sample incredible simple, I leveraged the .csx script-based function support, so the entire thing can be edited in VSCode trivially.

NOTE: go fork the repo first.

You will notice there is no project file, no CI settings, nothing. It’s the most minimalistic Azure functions service ever 😁. Turns out that you can totally (automatically) deploy an azure service from basically a loose folder containing at least the host.json file in there and the Azure functions runtime will happily lookup declared functions in subfolders.

Before we get into deployment, though, let’s see what the code does.

  1. The hosts.json declares the version, extension bundle (needed because we bind to Azure storage) and we added the http section so that we can use the shortlink URLs with no prefix whatesoever (after the base URL):

     {
       "$schema": "http://json.schemastore.org/host",
       "version": "2.0",
       "extensions": {
         "http": {
           "routePrefix": ""
         }
       },
       "extensionBundle": {
         "id": "Microsoft.Azure.Functions.ExtensionBundle",
         "version": "[1.*, 2.0.0)"
       }
     }

  2. The URLs will look like [FUNCTION_URL]/[SHORT_ALIAS], meaning we want to map all incoming “paths” to the same function. This is accomplished with the proxies.json

     {
         "$schema": "http://json.schemastore.org/proxies",
         "proxies": {
             "buildproxy": {
                 "matchCondition": {
                     "route": "{*alias}"
                 },
                 "backendUri": "https://localhost/aka/{alias}"
             }
         }
     }


    By convention, but also to avoid infinite redirection, we do use the function folder/name in the backend URI, which is defined next.

  3. The function definition specifies the route and the bindings in function.json:

     {
       "bindings": [
         {
           "authLevel": "anonymous",
           "name": "req",
           "type": "httpTrigger",
           "direction": "in",
           "methods": [ "get", "head", "post", "put" ],
           "route": "aka/{alias}"
         },
         {
           "type": "table",
           "name": "aka",
           "tableName": "Aka",
           "partitionKey": "aka",
           "rowKey": "{alias}",
           "take": 1,
           "connection": "AzureWebJobsStorage",
           "direction": "in"
         },
         {
           "type": "table",
           "name": "output",
           "tableName": "Aka",
           "connection": "AzureWebJobsStorage",
           "direction": "out"
         },
         {
           "name": "$return",
           "type": "http",
           "direction": "out"
         }
       ],
       "disabled": false
     }


    Note the "route": "aka/{alias}", which matches the backendUri specified earlier.

    For the table binding, we use a fixed Aka table name and aka partition key, since we only vary the mapping by the short name, which will be the row key for the table entries. You could change which connection string to use here too, but for simplificy, I’m just using the same as the function app itself.

  4. Finally, the function code is quite trivial too, defined in run.csx:

     static readonly string authorization = Environment.GetEnvironmentVariable("X-Authorization");

     public static IActionResult Run(HttpRequest req, Aka aka, ILogger log, out Aka output, string alias = "400")
     {
         log.LogInformation($"alias={alias}, PK={aka?.PartitionKey}, RK={aka?.RowKey}, Url={aka?.Url}");

         output = default;

         if (alias == "400" || string.IsNullOrEmpty(alias))
             return new BadRequestResult();

         // Create
         if (req.Method == "POST" || req.Method == "PUT")
         {
             if (req.Headers.TryGetValue("X-Authorization", out var values) &&
                 values.FirstOrDefault() == authorization)
             {
                 using (var reader = new StreamReader(req.Body))
                 {
                     var url = reader.ReadToEnd();
                     if (aka != null)
                         aka.Url = url;
                     else
                         aka = new Aka { RowKey = alias, Url = url };

                     output = aka;
                     return new RedirectResult(url);
                 }
             }
             else
             {
                 return new UnauthorizedResult();
             }
         }

         if (aka == null)
             return new NotFoundResult();

         return new RedirectResult(aka.Url);
     }


    Notable points here are:

    • The alias may be empty (may be user error) and that causes a 400 Bad Request response.
    • If the verb is POST/PUT, we check for an X-Authorization header that must match the one configured for the app. Note how we either update the aka parameter (automatically bound from Azure storage if the record was found) or we create a new one.
    • To persist changes to the table, we just assign the output to the aka variable, which would result in an update or a new entry automatically.
  5. To enable the “upsert” behavior (update or insert as necessary), the Aka class is defined as follows (in the same run.csx):

     public class Aka
     {
         string rowKey = "400";

         public string PartitionKey { get; set; } = "aka";
         public string RowKey
         {
             get => rowKey;
             set
             {
                 if (!string.IsNullOrEmpty(value))
                     rowKey = value;
             }
         }

         public string Url { get; set; }
         public string ETag { get; } = "*";
     }


    The ETag property is the one that allows the returned object to be considered an update to the existing one. Note also how we’re only setting the RowKey if it has a valid value, since otherwise Azure storage would fail to bind with an error, instead of a “not found” result. In combination with the parameter defaulting, we cover both bases :).

Deployment

The simplest possible deployment for a simple app like this is to directly deploy from GitHub using App Service:

github deployment

After connecting your GitHub account as needed, pick the App Service build service next:

app service build

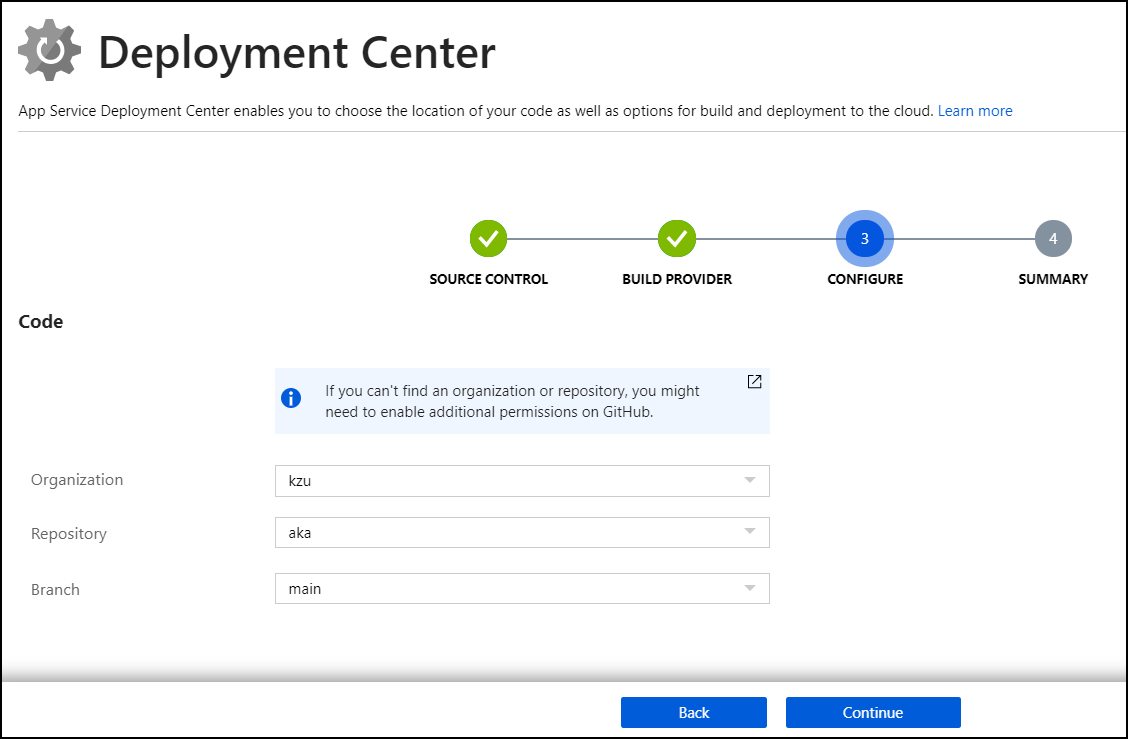

Finally, connect select the right org/repo/branch for the source. In my case, it looks like the following:

github source

NOTE: if your hosts.json is not in the root of the repository, you can still deploy using this service by setting the DEPLOYMENT_SOURCE application setting with the relative path to the folder to deploy, such as .\api.

Once deployed, you can simply use curl to create the shortlinks, i.e.:

> curl -i -d https://github.com/kzu/aka -H "X-Authorization: ****" https://aka.azurewebsites.net/aka
HTTP/1.1 302 Found
Location: https://github.com/kzu/aka

❯ curl -i https://aka.azurewebsites.net/aka
HTTP/1.1 302 Found
Location: https://github.com/kzu/aka

Notes

  • You can of course ignore the X-Authorization custom header I made up and just use the regular functions runtime authentication too

  • This very same service powers my own https://aka.kzu.io :)

  • You can easily query analytics for your redirections, like I do in azdo, and easily turn those into badges via https://shields.io/endpoint. See example redirection stats badge:

    redirects badge

    To set it up, create an API key to access your AppInsights account programmatically:

    app insights

    And configure it as APPINSIGHTS_APIKEY, alongside APPINSIGHTS_APPID in the function app settings.

Pretty powerful and flexible stuff with so few lines of code… gotta love serverless :)
